:: D-Link DI-701 Residential Internet Gateway/Firewall
Closer Look
(A) Local Port - Connects to your computer's NIC card
(B) Global Port - Connects to your Cable or DSL Modem
(C) Console Port - Direct Connection Configuration
(D) Power Input

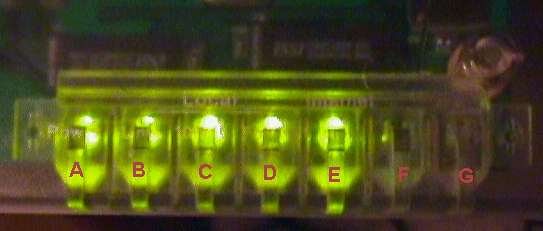

(A) Power Indicator
(B) Local Link Indicator - Indicates connection to LAN
(C) Local 10/100 Indicator - Indicates LAN speed
(D) Local Full/Half Indicator - Indicates Duplex for LAN
(E) Internet Link - Indicates connection to cable/dsl modem
(F) Unassigned
(G) Error - Indicates component malfunction
